Hosting WCF Service Inside SharePoint 2010

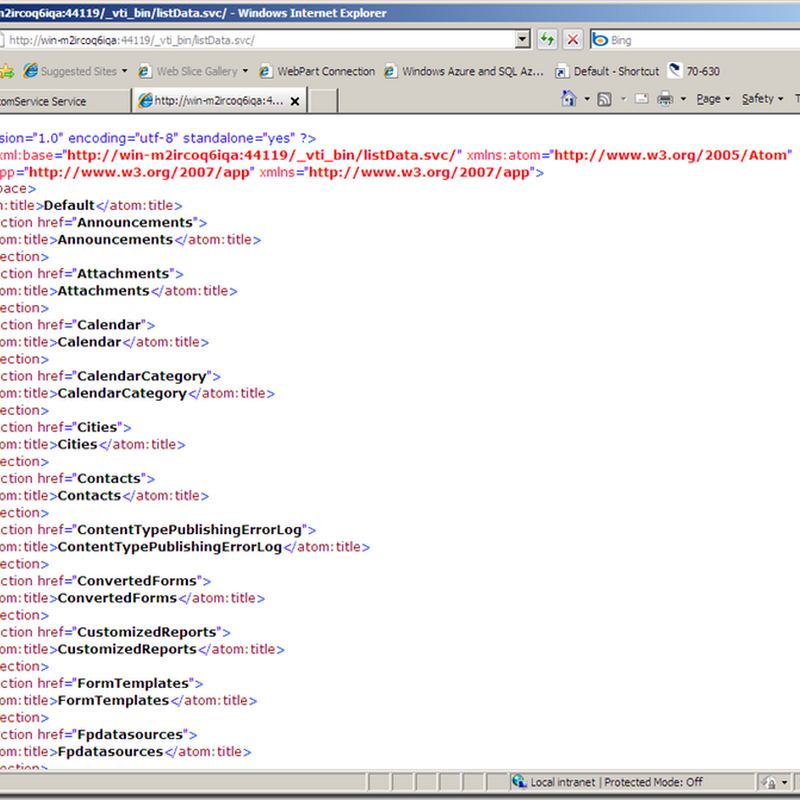

In SharePoint 2010  Out of the box all the Lists are exposed as WCF Restful Service using OData Protocol. Here is path or URL to access SharePoint Lists WCF Restful Services .   http://ServerName/_vti_bin/ListData.svc. The following screenshot shows the collections of List from my SharePoint site.


In this blog post  we are going to see how to host Custom WCF service Inside SharePoint 2010 and we will consume the same service from Silverlight client . Up front we know that we are going to call this WCF service from Silverlight so i am going to host this service in basicHttpBinding.

First  create a empty SharePoint project.


Now we need to provide the site where you wanted to host this WCF service and how we are going to deploy it either SandBox or Server Farm.  Here  i am going to choose Farm solution.

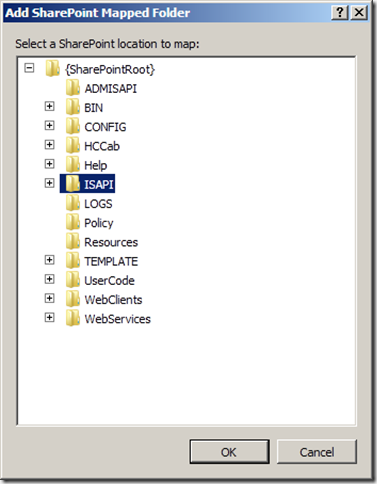

Once the project is successfully created. Now we need to Add  SharePoint ISAPI Mapping folder. To do this right clicking the project and choose the SharePoint Mapped Folder as shown below.


Adding /Mapping SharePoint  ISAPI Folder.


Now add C# Interface file and Class File to define the WCF Service Contract and Service implementation.  and also we need to add .svc and web.config file to host the service.


Simple WCF Service Contract:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Runtime.Serialization;
using System.ServiceModel;
using System.Text;
using Microsoft.SharePoint;

namespace WCFSVCINSHAREPOINT
{
[ServiceContract]
public interface ICustomService
{
[OperationContract]
string GetTime();
}
}


Service Implementation



using System;
using System.Collections.Generic;
using System.Linq;
using System.Runtime.Serialization;
using System.ServiceModel;
using System.Text;
using Microsoft.SharePoint;
using System.ServiceModel.Activation;

namespace WCFSVCINSHAREPOINT
{
[ServiceBehavior]
[AspNetCompatibilityRequirements(RequirementsMode = AspNetCompatibilityRequirementsMode.Allowed)]
public class CustomService : ICustomService
{
public string GetTime()
{
return DateTime.Now.ToString();
}

}
}


.SVC file






You can use .NET Reflector to get the following ServiceHost attributes PublicKeyToken , Assembly Type name, Version. But i  used the   Strong name  (SN.EXE ) Utility to get all the above attributes . Here is the sample how to use SN.EXE






Web.Config file






Now Fire up the IE and Browse the WCF Service. [Note: Make sure that your SharePoint Site has Anonymous access as  Shown below.]









Next Blog post we will see how to call this Service from Silverlight Client.



Nandri(Thanks)



SreenivasaRagavan
